Performance & Technical Specification

  Model

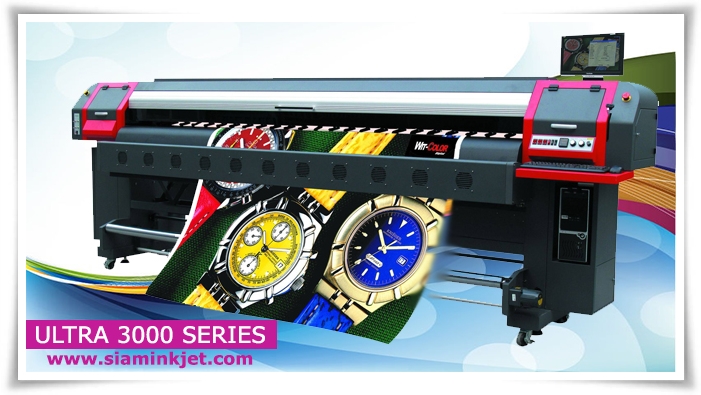

  Ultra 3000 – 4H / 6H

  Ultra 3000 – 8H

  Resolution

  720 dpi

  Print Head

  U.K.XAAR 600 4/6 pcs

  U.K.XAAR 600 8 pcs

  Printing Width

  3.2 m



             Speed

  3 Pass 49 m2

  2 Pass 110 m2

  4 Pass 39 m2

  3 Pass 92 m2

  2 Pass 60 m2

  4 Pass 72 m2

  Color

  16.7 million, CMYK LcLm

  16.7 million, CMYK / CMYK



        Media

  Media Width

  3.3m Max

  Media Handling

  Roll to Roll

  Media Types

  Paper, advertising banner, PVC, Mesh fabrics, adhesive vinyl etc.

  Ink

  solvent based ink, 2 years outdoor life(with wit – color inks)

  Image Data Format

  TIFF,JPG,EPS,PDF

  RIP

  Ultraprint / Photoprint wit - color vision

  Workflow

  File Printing (PRT/PRN/RTL/TIFF/BITMAP)Print images directly from software RIP flying   technology known as print while Riping

  Control Station

  Windows Xp  professional

  Operation
  Environment

  Power Supply: Single phase 50Hz/60Hz, 220V(±10%), >15A
  Single phase distortion: <2%
  Temperature: 18°C - 26°C
  Humidity: 40% - 70%

  Packing Size

  4.62m X 1.13 m X 1.68m (LxWxH)

  G.W/N.W

  960/780kg
