Performance & Technical Specification

 Model

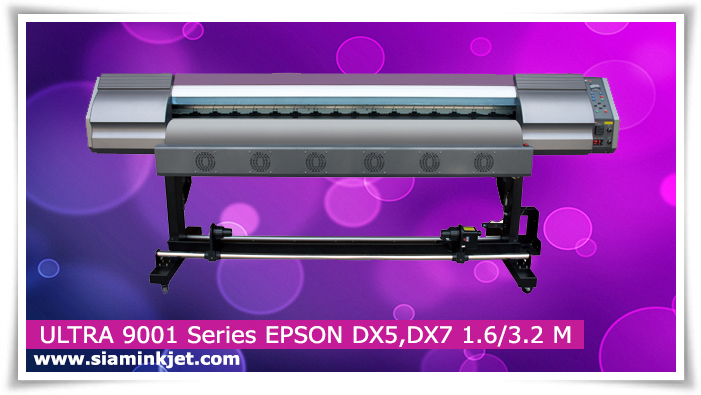

 Ultra 9001 1.6m. DX5, DX7

 Ultra 9001 3.2m. DX5, DX7

 Resolution

 1440 dpi

 Print Head

 Epson DX5, DX7

 Printing Width

 1.6m/3.2m

 Speed

 One Head : 3Pass : 21m2 / 4Pass : 16.8m2 / 6Pass : 13m2

 Two Head : 3Pass : 42m2 / 4Pass : 33m2 / 6Pass : 26m2

 Color

 16.7million.CMYK Lc Lm




  Media

 Media Width

 1.6m./3.2m.

 Media Handling

 Roll to Roll handling

 Media Types

 W Series Water based roll media (Photo Paper, Vinyl, PP, Film etc.)  S Series outdoor Eco-solvent based roll media
 (Flex, Vinly, Leather, etc.)

 Ink

 W Series Water based / S Series outdoor Eco-solvent based

 Image Data Format

 TIFF,JPG,EPS,PDF

 RIP

 Maintop/Photoprint (Optional)

 Control Station

 Windows XP/Windows VISTA/Windows 7

 Operation Environment

 AC 220-240V   50-60HZ  Max Power Consumption 500W

 Temperature

 10-35C

 Humidity

 40%-60% RH

 Linear Rail

 Hiwin (Made in Taiwan)

 Belt

 Megadyne Brand Belt From Italy

 Media Feeding

 Multifunctional Feeding System
